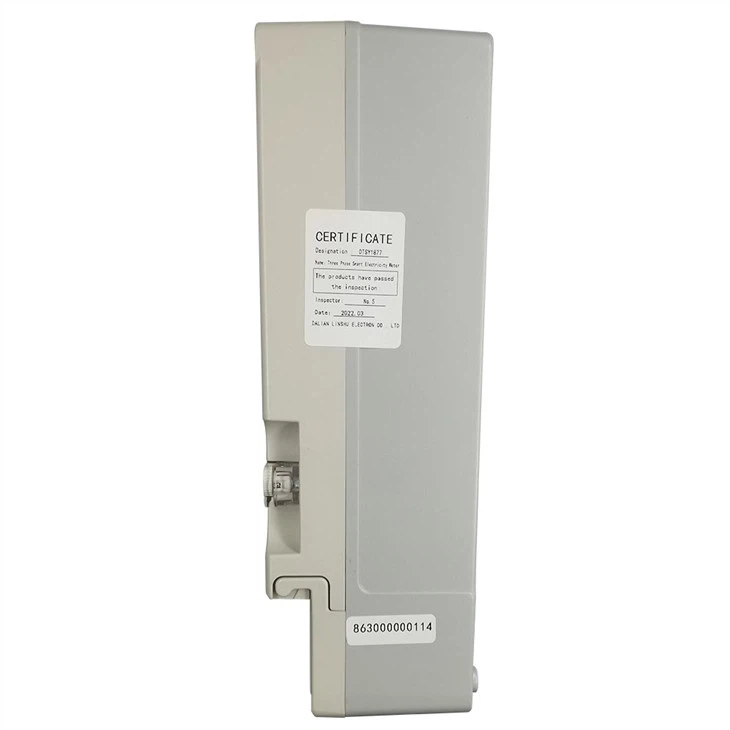

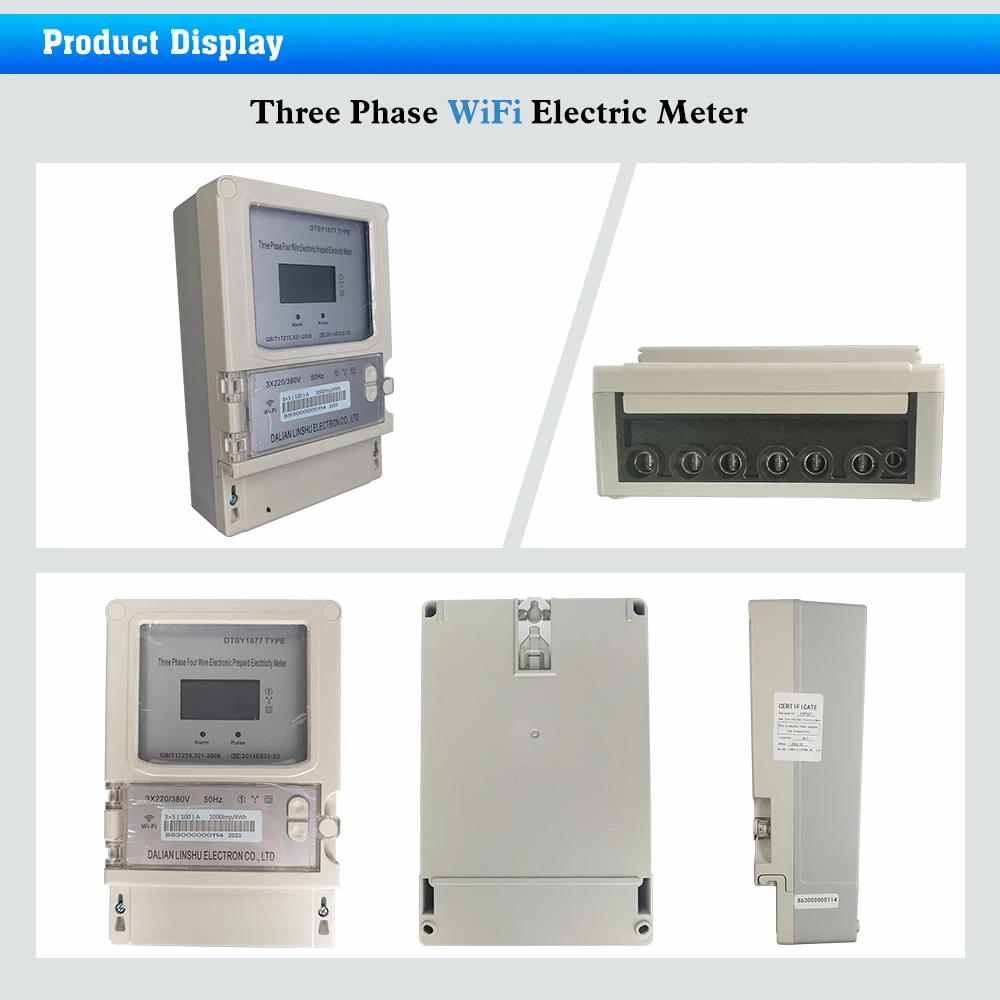

Three Phase Remote Control Wifi Energy Meter
Product Introduction:
The Three Phase Remote Control Wifi Energy Meter is a smart meter designed to handle high current loads. Its main functions include energy measurement, load control, and customer information management. It is a highly efficient product for upgrading power usage systems, commercializing energy, setting tariffs, and adjusting grid load stages. With cutting-edge wireless communication technology, the meter can easily transmit energy data directly to the server platform via Wi-Fi. This feature ensures that energy consumption can be monitored and managed from anywhere, anytime, making it a highly advantageous product for those looking to optimize their energy usage.
Product Feature
Our Remote Control Wifi Energy Meter is known for its high precision, sensitivity, and reliability, and is designed to prevent any tampering with power, such as reverse tempering, live ground wire tempering, short circuits, etc. One of the features that sets our product apart is its simple structure and robust design, which allows for modern communication to be built directly into the meter. Another noteworthy aspect is the ability to measure both positive and negative work in the same direction of accumulation, making it a versatile option for those in need of an energy meter.
Working principles of three-phase remote control wifi energy meter:
The process of measuring voltage and current involves taking samples from their respective circuits and transforming them into signals that can be effectively used in an integrated circuit. The output pulse generated by the meter is positively proportional to the power being measured, driving either a step-motor counter or an LCD counter to obtain the final reading. Additionally, the meter is equipped with an energy pulse output with a pulse width of 80+20ms, making it possible to test the functionality of the meter in relation to energy measurement. To achieve this, the pulse signal is precisely calculated and delivered to ensure the most accurate measurement possible.
The specifications of a three-phase remote control wifi energy meter are as follows: it is a device that allows users to remotely control and monitor energy consumption in a three-phase electrical system through a wifi connection. This energy meter provides accurate and real-time data on energy usage, helping users to identify areas of energy waste and optimize their energy consumption. With its remote control feature, users can turn on/off electrical appliances or devices from a distance, thus increasing convenience and energy efficiency. The wifi capability enables users to access energy consumption data through their smartphones or other connected devices, allowing them to track and manage their energy usage effortlessly. The three-phase compatibility of this energy meter makes it suitable for commercial and industrial applications where three-phase electrical systems are commonly employed. Overall, this three-phase remote control wifi energy meter provides an efficient and convenient solution for energy monitoring and management in a three-phase electrical setup.
Rated frequency | 50 Hz |
Rated current | 3*5(100) A |
Rated voltage | 3*220/380V |
kWh Accuracy | 1.0 S |
Pulse constant | 10000 imp/kWh |
Digits Display | LCD 6+2 |
Working Temperature | -20～+ 70℃ |
Starting Current | 0.4%lb |
Working Humidity | <95% |
Power Consumption | < 2W / < 10VA @ Un |
Item size: | 145 * 218 * 70 mm |
Weight | 1.2 kg/piece |
Package size | 22 * 8 * 15 cm |
RS485 port | MODBUS-RTU protocol, 1200~9600bps. No parity, default 9600bps |
Function three-phase remote control wifi energy meter:
* Alarm function. Once the remaining electric power quantity is approaching the alarming power quality, the digital tube should be lighted to remind the user of timely purchasing.
* Auto cut-off function. Once the electric consumption available is out, or current/voltage overload, the meter should be automatically cut off.
* Good memory. If there is no Wi-Fi, it will record the electricity consumption value, and when Wi-Fi is connected, the electricity data will transmit to the cloud server, the system will update automatically, and the management department and user can check it easily.
FAQ:
1. Can I have my own Logo on the product?
Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
2. Can you produce the products according to my own drawings?
Yes, we can produce the products according to your drawings that will be most satisfy you.
3. Can you provide the training?
We have professional engineer to serve our overseas clients.
